Belousov-Zhabotinsky reaction

Numerical investigation of the 11-stage model

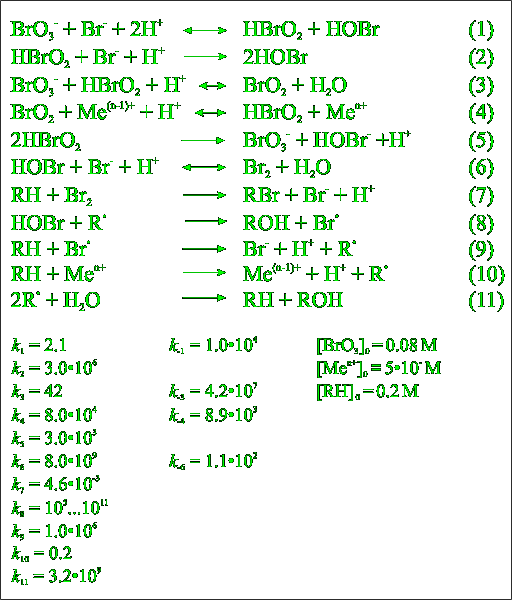

Chemical reaction scheme

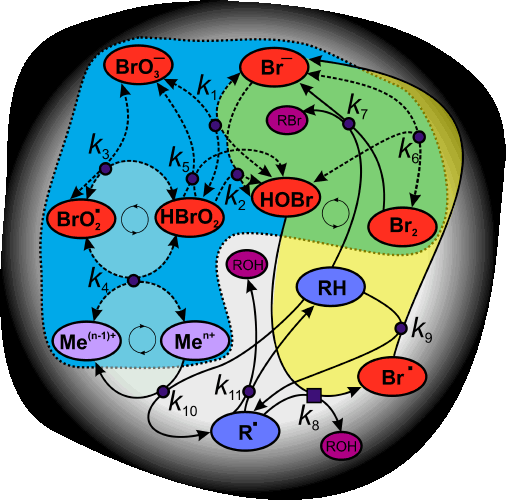

Graphical scheme

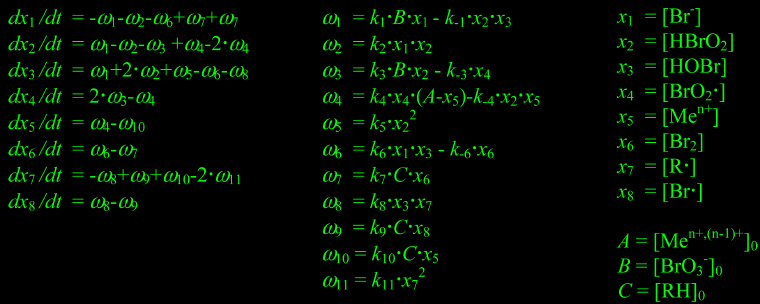

System of nonlinear ordinary differencial equations

BZPhase

Program for Modeling and Building of
3D/4D Phase Portraits of Belousov-Zhabotinsky reaction

Created by

Post Graduate Student       Andrew B. Ryzhkov
Under Graduate Student    Arkady V. Antipin

Under supervision
Dr.Sci.(Chemistry)             Alexander D. Karavaev
PhD.   (Mathematics)         Oleg V. Noskov

For DOS 6 and higher with PMODE/W DOS Extender
Version 1.21, 26 Mar 1998

Program bz_exe.zip
Program manual Read_me.txt
Examples bz_exm.zip

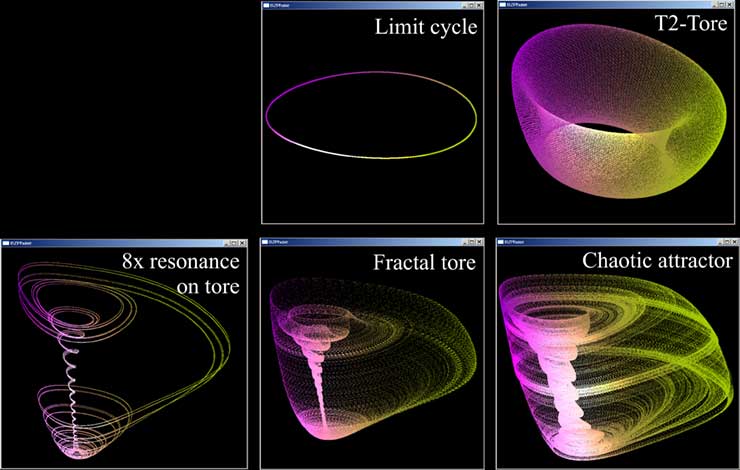

MS Windows OpenGL version:

Examples



Gallery of Phase portraits of
Belousov-Zhabotinsky reaction

Limit CycleAttracting to Limit CycleT2 ToreBursting OscillationFractal Tore
Chaos L3S8Chaos L3S5Tore-ChaosQuadruplication of Limit Cycle - (L1)^4Chaos
Chaos L3S2Shil'nikov's attractorTransition from bursting to toreAttracting to LCRight Part of BZ Bifurcation Diagram

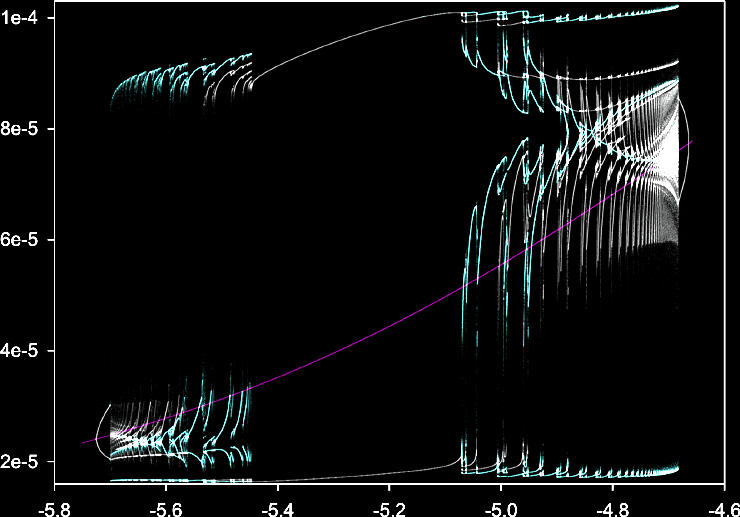

Full bifurcation diagramm of the 11-stage model of the Belousov-Zhabotinsky reaction



Last modification 1 Apr 2005 by Andrew Ryzhkov
